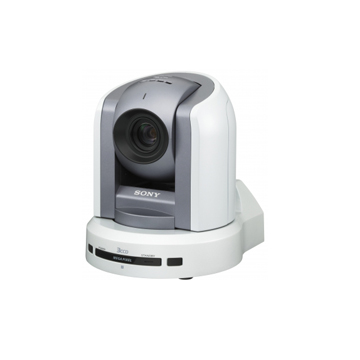

BRC-300P Three 1/4-inch 7-type Advanced CCD sensors all-in-one SD robotic compact camera

Brand:SONY

Model:BRC-300P

Detail

BRC-300P Three 1/4-inch 7-type Advanced CCD sensors all-in-one SD robotic compact camera
Accessories
BRBK-301
Analog RGB Component Card for BRC-300 & BRU-300

BRBK-302
SDI Card for BRC-300 & BRU-300

RM-BR300
Remote control unit for BRC series cameras

Specifications


Camera
Image Sensor
1/4.7-type IT Advanced HAD CCD x3
Image Sensor (Number of Effective Pixels)
Approx. 1.02 Megapixels
Image Sensor (Total Number of Pixels)
1.07 Megapixels
Signal System
BRC-300: NTSC
BRC-300P: PAL
Sensitivity
NA
Minimum Illumination (25IRE)
7 lx (25IRE, F1.6, +18dB)
Horizontal Resolution
NA
S/N Ratio
50 dB
Gain
Auto/Manual (-3 dB to +18 dB, 3 dB steps) switchable
Shutter Speed
BRC-300: 1/10,000 s to 1/4 s
BRC-300P: 1/10,000 s to 1/3 s
Exposure Control
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, spot AE
Color AE Function
No
White Balance
Auto/Indoor/Outdoor/One-push/Manual
Optical Zoom
12x
Digital Zoom
4x
Focusing System
Auto/Manual
Horizontal Viewing Angle
4:3 mode: 37.8°, 16:9 mode: 45.4°(Wide end)
Focal Length
f = 3.6 mm to 43.2 mm
F1.6 (Wide), F2.8 (Tele)
Minimum Object Distance
300 mm (Wide)
800 mm (Tele)
Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-30°
Pan/Tilt Speed
Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s
Preset Position
6
Camera Features
Auto ICR
No
Wide-D
No
Image Stabilization
No
Image Flip
On/Off
ND Filter
No
Color Gain
No
Color Hue
No
Color Matrix
No
Color Detail
No
Skintone Detail
No
Gamma
No
Gamma Level
NA
Black
NA
Black Gamma
NA
Knee Point
No
Knee Slope
NA
Knee Sat Level
NA
Auto Focus Assist Function
No
Flicker Cancel
No
B&W
No
Color Bar
No
Interface
SD Video Output
VBS, Y/C
Camera Control Interface
RS-232C/RS-422
(VISCA)
External Sync. Input
Yes
General
Power Requirements
DC 12 V
Power Consumption
21.6 W (without optional cards)
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
Dimensions (W x H x D) *1
180 x 210.1 x 205 mm
7 1/8 x 8 3/8 x 8 1/8 inches
Mass
2.5 kg
5 lb 8 oz
Optional Card Slots
Yes
Body Color
White
Size of Screw Hole for Tripod
1/4-20UNC, depth 6.5
Mountable Angle
±15°
Ceiling Mount
Yes
Supplied Accessories
IR Remote Commander Unit (1)
AC power adaptor (1)
AC power cord (1)
RS-422 connector plug (1)
Ceiling bracket (2)
Wire rope (1)
Screws (7)
Operating instructions (1)
Notes
Note
*[1] The values for dimensions are approximate.
