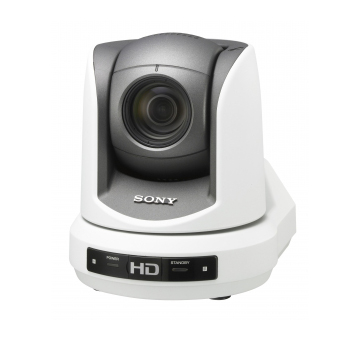

BRC-Z330 1/3-inch CMOS sensor SD / HD robotic camera

Brand:SONY

Model:BRC-Z330

Detail

BRC-Z330 1/3-inch CMOS sensor SD / HD robotic camera
Accessories

RM-IP10
IP remote control panel for BRC cameras

BRBK-IP10
IP remote control option board for BRC-H900

BRBK-HSD2
HD / SD-SDI output card for BRC-H900 and BRC-Z330 robotic cameras

BRBK-SA1
Analogue SD output card for BRC-H900P and BRC-Z330 robotic cameras

RM-BR300
Remote control unit for BRC series cameras

CCFC-S200
200m Single Mode Optical-fiber Cable to connect BRC-H900 and BRC-Z330 cameras (fitted with the optional BRBK-SF1 card) to BRU-SF10

Specifications


Camera
Image Sensor
1/3-type CMOS
Image Sensor (Number of Effective Pixels)
Approx. 2.16 Megapixels
Signal System
60 Hz: 1080/59.94i, 720/59.94P, NTSC
Sensitivity
F4.2 (Not to be published)
Minimum Illumination (50IRE)
6 lx (50IRE, F1.6, +24 dB)
Horizontal Resolution
800 TV line (Analog) (Not to be published)
S/N Ratio
50 dB
Gain
Auto/Manual (-3 dB to +24 dB and Hyper Gain)
Shutter Speed
1/10,000 s to 1/60 s or 1/10,000 s to 1/50 s
Exposure Control
Auto, Manual, Priority mode (shutter priority,Gain priority & iris priority), EV compensation, Color AE
Color AE Function
Off/Narrow/STD/Wide switchable in menu
White Balance
Auto1/Auto2/Indoor/Outdoor/One-push/Manual
Optical Zoom
18x
Digital Zoom
4x
Focusing System
Auto/Manual
Horizontal Viewing Angle
55.1°(Wide-end)
Focal Length
F1.6 (Wide), F2.2 (Tele)
f=4.6 mm to 82.8 mm
Minimum Object Distance
500 mm (Wide, Limiter On)
100 mm (Wide, Limiter Off)
1,500 mm (Tele)
Pan/Tilt Angle
Tilt: +90°/-30°
Pan: ±175°
Pan/Tilt Speed
Tilt: 0.25° to 60°/s
Pan: 0.25° to 60°/s
Preset Position
16
Camera Features
Auto ICR
No
Wide-D
No
Image Stabilization
No
Image Flip
On/Off
ND Filter
Off/ 1/4 / 1/16 switchable in menu
Color Gain
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
Color Hue
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
Color Matrix
ON/OFF
Color Detail
Off/Narrow/STD/Wide switchable in menu
Skintone Detail
No
Gamma
Normal/Cinema
Gamma Level
NA
Black
NA
Black Gamma
NA
Knee Point
Auto/Low/Mid/High/Off switchable in menu
Knee Slope
NA
Knee Sat Level
NA
Auto Focus Assist Function
On/Off
Flicker Cancel
On/Off
B&W
On/Off
Color Bar
On/Off
Interface
HD Video Output
Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
SD Video Output
Composite, Y/C
Camera Control Interface
RS-232C/RS-422
(VISCA)
External Sync. Input
Yes
General
Power Requirements
DC 10.8 V to 13.2 V
Power Consumption
Max 18 W (without optional cards)
Operating Temperature
32 °F to 104 °F
0 °C to 40 °C
Storage Temperature
-4 °F to +140 °F
-20 °C to +60 °C
Dimensions (W x H x D) *[1]
6 3/8 x 7 3/8 x 7 5/8 inches
160.8 x 186 x 193.4mm
Mass
4 lb 4 oz
1.9 kg
Optional Card Slot?
Yes
Body Color
White
Size of Screw Hole for Tripod
1/4-20UNC
Mountable Angle
±15°
Ceiling Mount
Yes
Supplied Accessories
Wire rope (1)
Screws(M4 x 8) (1)
Screws(M3 x 8) (7)
RS-422 connector plug (1)
Operating instructions (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
AC power cord (1)
AC power adaptor (1)
Notes
Note
*[1] The values for dimensions are approximate.
