品牌Brand:i-Pro松下
型號Model:GP-UH532HA/CA

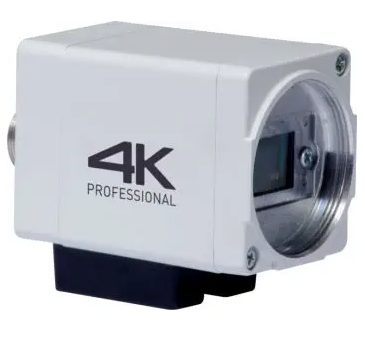

GP-UH532HA i-Pro手術攝像機
應用:醫用, 手術, 用于眼科
所用技術:數字
解析水平:全高清, HD, 2K, 4K分辨率
其他特性:USB
重量:65g
產品介紹
配備 1/3 英寸圖像傳感器的最小 4K 攝像機云臺
4K/2K 同步雙通道輸出
HDMI 和 HD-SDI 輸出
出色的色彩還原
USB 上最多可存儲 6 個個人配置文件
醫療電氣標準 IEC60601*
色彩增強選項
易于在各種應用中實施
用戶友好的布局
GP-UH532 4K 超高清,電視線高達 1600 條。系統包括 GP-UH532HA 攝像機云臺和 CCU 單元 GP-UH532CA。

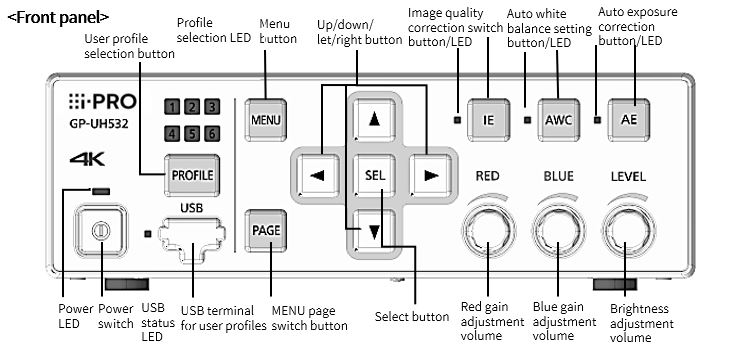

緊湊型攝像機頭是市場上最小的攝像機頭之一。GP-UH532HA 微型攝象頭配有 1/3 英寸圖像傳感器,采用用戶界面設計,可通過操作菜單或旋轉鈕輕松控制系統。USB 存儲器中可存儲六個或更多個人配置文件,這些配置文件可根據各種應用進行切換。
該系統符合 IEC60601* 醫療電氣標準,因此可用于各種醫療設備或程序。由于正面、頂部、左側和右側都有涂層,醫療和顯微區域都能從抗菌涂層中受益。
HDMI 和 HD-SDI 等多種視頻輸出接口可實現 4K 微型攝像系統與其他設備的順暢連接。
攝像機
組件 - 規格
圖像傳感器 - 1/3 英寸 3MOS 型圖像傳感器
水平分辨率 - 中心點 1600 電視線(2160p 輸出時的典型值)
所需照明 - 2000lx (3200 K, F8)
信噪比 - F8 時 54 分貝
鏡頭安裝 - C 卡口
尺寸 - 27 毫米(寬)x 30 毫米(高)x 42.5 毫米(深)(1-1/16 英寸(寬)x 1-3/32 英寸(高)x 1-43/64 英寸(深)
Smallest 4K camera head with 1/3 inch image sensor
4K/2K simultaneous dual channel output
HDMI and HD-SDI outputs
Excellent color reproduction
Up to 6 personal profiles storable on USB
Medical Electrical Standards IEC60601*
Color enhancement options
Ease of implementation in a variety of applications
User-friendly layout

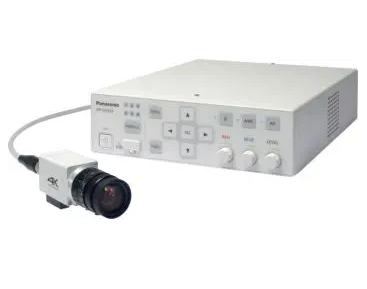

The GP-UH532 4K Ultra HD with up to 1600 TV lines. The system includes the GP-UH532HA camera head as well as the CCU Unit GP-UH532CA.
The compact camera head is one of the smallest on the market. The GP-UH532HA micro camera head features a 1/3” image sensor and employs a user interface designed for easy control of the system through the operation menu, or the rotating knob. Six or more personal profiles can be stored on a USB memory, and these configurations can be switched to suit a variety of applications.
The system indicates Medical Electrical Standards IEC60601* and can therefore be utilized in a variety of medical devices or procedures. Thanks to a coating covering front, top, left & right side, medical and microscopic areas can benefit from the antibacterial coating.

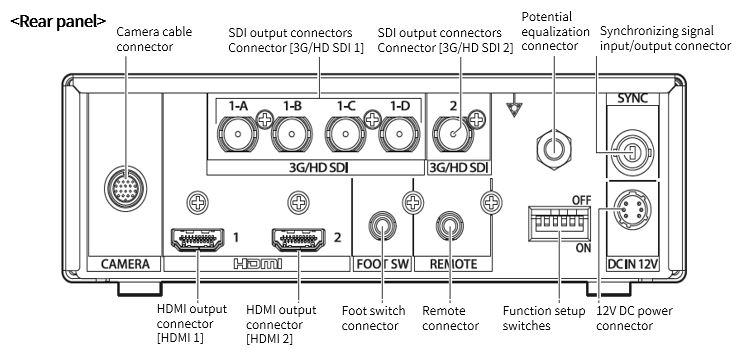

Various video outputs such as HDMI and HD-SDI allow for a smooth connection between the 4K micro camera system and other devices.
Camera
COMPONENT - SPECIFICATION
Image Sensor - 1/3 inch type 3MOS image sensor
Horizontal Resolution - 1600TV lines at center (typ. When 2160p output)
Required Illumination - 2000lx (3200 K, F8)
S/N - 54dB at F8
Lens Mount - C-Mount
Dimension - 27 mm (W) x 30mm (H) x 42.5 mm(D) (1-1/16 inches (W) x 1-3/32 inches (H) x 1-43/64 inches (D))

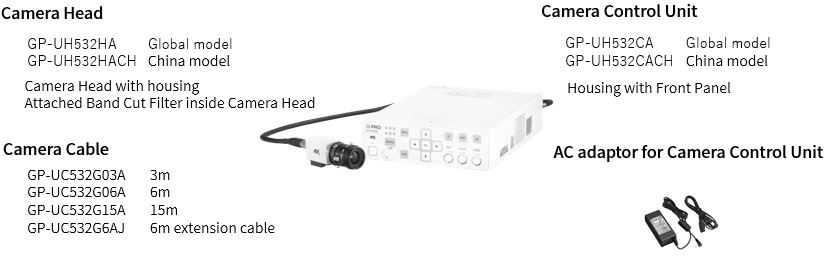

Option
COMPONENT SPECIFICATION
Camera Cable
GP-UC532G03A (3m)
GP-UC532G06A (6m)
GP-UC532G15A(15m)
GP-UC532G06AJ (6m) extention cable Up to 21m (15m+6m)
Power Supply MPU60A-105
Model Number
GP-UH532C/CA
GP-UH532CCH/CACH
Camera Head to be connected
GP-UH532H/HA/HCH/HACH,
GP-UH332H/HA/HCH/HACH
