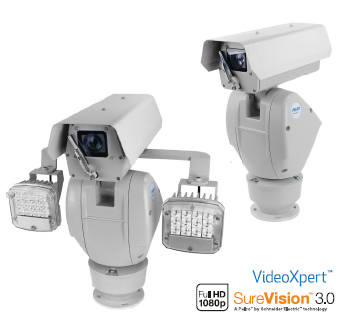

ES6230-15-R2, ES6230-15P-R2 Pelco EspritEnhanced Series IP Positioning System
Product Features
? Surevision 3.0 Technology, Including:
– 130dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 LUX, Anti-Bloom Technology, 3D Noise Filtering, Enhanced Tone Mapping
? Up to Full HD 1080p and up to 60 Images per Second
? Full Suite of Built-In Analytics Including AutoTracker, Adaptive Motion Detection, Abandoned Object, and More.
? Defog Mode Provides Three Levels of Fog Removal Within the Image for Improved Image Quality During Bad Weather Conditions
? Vivid Mode Can be Turned On/Off to Drastically Improve the Image Contrast and Color Saturation
? Electronic Image Stabilization (EIS)
? Pan/Tilt and Enclosure with Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC)
? Dual Stream H.264 IP Video with Smart Compression
? Vari-Zoom IR Illuminator Option with 200 Meter Range
? Dual Mode Illumination Option with IR and White Light LED Banks
? 16 Preset Tours, 256 Presets, 32 Window Blanks, 8 Patterns, 8 Scans
? Integrated Window Wiper with Configurable Delay and Shut-Off (ES6230-1x Models)
? ONVIF Profile S, Profile G, and Profile Q Conformant
? 360° Continuous Pan Rotation at 140° per Second
? 2 SFP Ports
CAMERA/OPTICS
Specification ES6230
Sensor Type 1/2.8-inch Type Exmor CMOS Sensor
Optical Zoom 30X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/4.7, focal length 4.3 mm (wide)-129.0 mm (tele)
Horizontal Angle of View 63.7°(wide) - 2.3° (tele)
Aspect Ratio 16:9
Light
Sensitivity
Color (33 ms) 0.03 lux
Color (250 ms) 0.008 lux
Mono (33 ms) 0.004 lux
Mono (250 ms) 0.001 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 50 dB gain at 30 IRE (30% of signal level) with Sensitivity Boost OFF;
4X improvement to sensitivity with Sensitivity Boost ON
Day/Night Capabilities Yes
Shutter Range 1/1 ~ 1/10,000 sec
Signal-to-Noise Ratio >50dB
IR Cut Filter Yes
Wide Dynamic Range 130 dB
Iris Control Auto Iris with manual override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Electronic Image
Stabilization (EIS) Yes
IR Illumination Range
2 light option: Vari-Zoom up to 200 meter
Dual Mode 1 light option: Vari-Zoom up to 100 meter
IR Wavelength 850nm
White Light Illumination
Range
Dual Mode 1 light option: Adjustable up to
250 meter (>20% mean pixel value
brightness increase in color mode)
GENERAL
Construction Die-cast, extruded and sheet aluminum;
stainless steel hardware
Finish Gray polyester powder coat
Operating Temperature –45° to 60°C (–50° to 140°F) ambient for
sustained system operation or 74°C (165.2°F)
absolute maximum ambient per NEMA TS-2;
within two hours after power-up, the entire
unit can de-ice and be operational from a
temperature of –25°C (–13°F). Cold start from –40°C.
Impact Resistance Metal housing meetings IK10, IOP window
meets IK6, IOC window meets IK7 Wind
Full Motion Control 0 to 65 knots (75 mph/120 kph)
Limited Speed Control 65 to 78 knots (90 mph/145 kph)
Survive 78 to 130 knots (150 mph/240 kph)
Storage Temperature –20° to 60°C (–4° to 140°F)
Operating Humidity
Unit Standard with IOP: 10 to 90% relative
humidity (noncondensing)
Standard with IOC: 10 to 100% relative
humidity (condensing)
Weight
Unit Weight Without Illuminator With Illuminator
Standard with IOP 12.83 kg (28 lb) N/A
With Wiper and IOP 13.06 kg (29 lb) 15.86 kg (35 lb)
With Wiper and IOC 13.56 kg (30 lb) 16.36 kg (36 lb)
Shipping Weight Without Illuminator With Illuminator
Standard with IOP 16.7 kg (37 lb) N/A
With Wiper and IOP 16.94 kg (37 lb) 21.93 kg (48 lb)
With Wiper and IOC 17.44 kg (38 lb) 22.43 kg (49 lb)
MODELS
ES6230-02
ES6230-05
ES6230-12
ES6230-15
ES6230-12-R2
ES6230-15-R2
ES6230-12-RWUS
ES6230-15-RWUS
ES6230-12P
ES6230-15P
ES6230-12P-R2
ES6230-15P-R2
ES6230-12P-RWUS
ES6230-15P-RWUS
