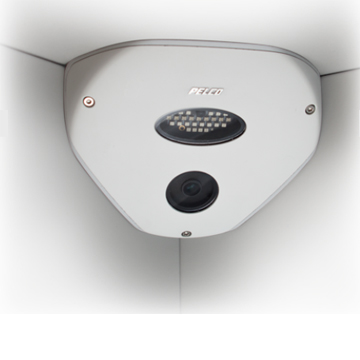

IBD129-1 IBD329-1 Pelco IBD High-Security Corner-Mount Cameras
Product Features
? 1 or 3 megapixel (MPx) resolution
? Up to 30 images per second (ips) at 3 MPx
? Operating temperature up to 55°C (131°F)
? Up to 128 GB edge storage with micro SD card
? Motion detection and camera sabotage detection
? Power over Ethernet (PoE) Class 3, 24 VAC, ± 10%, 12 VDC
? Pelco Smart Compression Technology
? Vandal resistant to IK10+ 50 joule, IP66 ingress protection
? Compatible with Pelco and third-party video systems
? ONVIF Profile S, Profile G, and Profile Q conformant
? Full 3-Year warranty and support

? Digital audio
? 940 nm IR (no glow)
PELCO’S SMART COMPRESSION TECHNOLOGY
Pelco’s Smart Compression Technology lowers bandwidth and storage
requirements by up to 70%. Our technology allows the user to make
intelligent decisions regarding storage savings and image quality.
Pelco’s Smart Compression Technology dynamically analyzes motion
occurring within live video in real-time, to intelligently compress the
information you don’t need, while retaining details with clear quality in the
areas that are important in the scene. By enabling Dynamic GOP, an added
feature of Smart Compression, the number of I-frames are automatically
reduced in scenes with low motion. Based on the complexity of scenes and
motion occurring, such as a store room that has limited entry and exit, up to
70% bandwidth savings can be achieved.
AUDIO
Streaming Bi-directional
Input Line In/Line Out terminal block
Encoding G.711 U-law
Microphone Built-in digital microphone
GENERAL
Construction Die cast aluminum, corner-mount design
Ingress Protection IP66
Type 4X
Vandal Resistance IK10+ (50 Joule)
Finish RAL 9003
Unit Weight 1.15 kg (2.54 lb)
Shipping Weight 1.75 kg (3.86 lb)
ELECTRICAL
Network Port RJ-45 connector for 10/100Base-TX
Power Input PoE (IEEE 802.3af, Class 3); 24 VAC± 10%,
12 VDC± 10%
Resolution Model
Number Description
1 MPx IBD129-1 Rugged Corner Mount Camera, IR, 12 VDC/24 VAC, PoE
3 MPx IBD329-1 Rugged Corner Mount Camera, IR, 12 VDC/24 VAC, PoE
