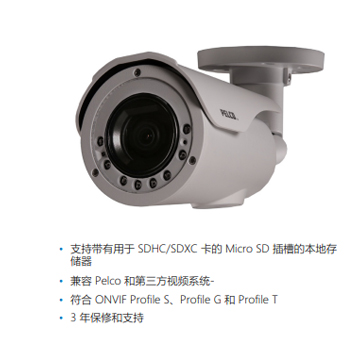

IBE832-1ER IBE839-IER Pelco IBE Environmental IR Bullet Camera
 Product Features
? SureVision Technology (Advanced Low-Light & WDR Performance Simultaneously, Anti-Bloom Technology, 3D Noise Filtering, and Enhanced Tone Mapping)
? H.265, H.264, and MJPEG Video Encoding with Pelco Smart Compression
? Up to 4 K Resolution
? Robust Electronic Image Stabilization
? Up to 120 Frames per Second (fps) at 1080p on Select Models
? Up to 130 dB Wide Dynamic Range
? Power Redundancy Between PoE+ to 12 VDC / 24 VAC
? IP66, IP67, IP68, IP69K, Type 4X
? IK10 (20 Joules) Rated Vandal Resistant
? Built-in Pelco Enhanced Analytics Suite & Capable of Advanced Deep Learning Analytics Available Separately
? Adaptive IR Illumination 850 nm up to 50 Meters  Support for Local Storage with Micro SD Slot for SDHC/SDXC Card
? Compatible with Pelco and Third-Party Video Systems
? ONVIF Profile S, Profile G, and Profile T Conformant
? Full 3-Year Warranty and Support Environmental/Vandal-Resistant
? Camera can mount directly to the wall.
? Meets IP66, IP67, IP68, IP69K
? Meets IK10 (20J)
? Meets Type 4X
? Aluminum Construction
? RAL 9003
? IEEE802.3at PoE+ Class 4, 24 VAC or 12 VDC
? NEMA TS-2 para 2.2.7 - 2.2.9
 CAMERA
 Imaging Device 1/2.8-inch or 1/1.8-inch
 Imager Type CMOS
 Imager Readout Progressive scan
 Highest Resolution
 4 K 3840 x 2160
 5 MP 2592 x 1944
 3 MP 2048 x 1536
 2 MP 1920 x 1080
 Signal-to-Noise Ratio >60 dB
 Electronic Shutter Range 1/10,000 sec to 1sec
 Wide Dynamic Range Up to 130 dB (2 MP and 3 MP models),
 Up to 120 dB (5 MP and 4 K models)
 White Balance Range: 2,500° to 10,000°K; Selectable Auto/Manual/ATW
 Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with different set points on lux Adaptive IR Illumination 850nm wavelength, maximum distance of up to 50 meters (164 feet)
 3D Noise Reduction Yes (ON / OFF selectable)
 LENS
 Lens Type Built-in; varifocal
 Focal Length f/1.3, 2.8 ~ 8 mm,
 f/1.5, 8 ~ 20 mm,
 f/1.5, 4 ~ 9 mm,
 f/1.6, 9 ~ 20 mm
 Focus Autofocus, motorized
 Zoom Remote motorized
 Auto Iris Type P-Iris
 AUDIO
 Streaming Bidirectional: full or half duplex
 Input Line level, 3K ohm differential with/1Vp-p
 maximum signal
 Output Line level, 600 ohm differential with/1Vp-p
 Encoding G.711-Alaw/G711-Ulaw
 GENERAL
 Pan/Tilt Adjustment Manual
 Pan 0° ~ 360°
 Tilt 7.5° ~ -90°
 Rotation 0° ~ 360°
 Construction Aluminum with polycarbonate window
 Finish White, RAL 9003
 Weight Unit Shipping
 3.5 lb (1.59 kg) 4.3 lb (1.95 kg)
 EPA 51.2 in
 ENVIRONMENTAL
 Operating Temperature –50° to 60°C (–58° to 140°F)
4 Hours Maximum Operating
 Temperature 65°C (149°F)
 Start-up Temperature –40°C (–40°F)
 Storage Temperature –40° to 60°C (–40° to 140°F)
 Operating Humidity 10 to 100%, RH condensing
 Storage Humidity 20 to 80%, RH noncondensing
 Impact Resistance IK10 (20 J)
 Ingress Protection IP66, IP67, IP68, IP69K, Type 4X
 Shock and Vibration
 Resistance Tested in accordance to EN 50155 (EN 61373,Category 1, Class B); IEC/EN 60068:2-6 and 2-27
 RECOMMENDED MOUNTS
 IBP3-PLMT Pole mount directly
 IBP3-PLMTwith IBP3BBAP-ES Pole mount with Environmental, Surface
 Mount Junction Box
 IBP3BBAP-ES Wall mount
 IBP3BBAP-EI In-ceiling mount
 POWER SUPPLIES
 WCS Series Outdoor, 24 VAC power supply
 POE130-XT Single-port PoE Gigabit extender powered by
 POE190-BT injector
 POE130-AT (US or EU) Single-port PoE+ midspan with power cord
 POE430-AT (US or EU) 4-port, 30W per port PoEmidspan with power cord
 POE1236-AT (US or EU) 12-port, 36W PoE midspan
 POE2436-AT (US or EU) 24-port, 36W PoE midspan
MODELS
 Resolution ModelNumber Lens Description
 2MP IBE238-1ER 2.8 ~ 8 mm Sarix Enhanced Environmental Bullet
 3MP IBE332-1ER 8 ~ 20 mm Sarix Enhanced Environmental Bullet
 3MP IBE338-1ER 2.8 ~ 8 mm Sarix Enhanced Environmental Bullet
 5MP IBE539-1ER 4 ~ 9 mm Sarix Enhanced Environmental Bullet
 4K IBE839-1ER 4 ~ 9 mm Sarix Enhanced Environmental Bullet 4K
 4K IBE832-1ER 9 ~ 20 mm Sarix Enhanced Environmental Bullet 4K
