Brand:Pelco
Model:IJV223-1ERS 3.6mm
IJV522-1ERS 2.8mm

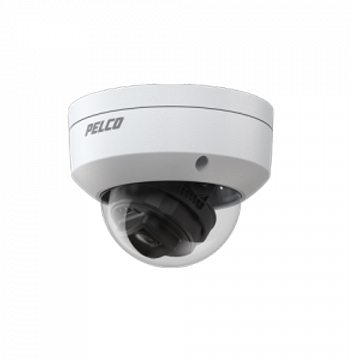

IJV223-1ERS,IJV522-1ERS Pelco Mini Dome Camera
Product Features
Excellent low light performance
True Wide Dynamic Range
30 fps @ 1080p, 20 FPS @ 5 MP
Built-in IR illumination up to 30 M
H.265 and H.264 encoding with Pelco Smart Compression
IP66 for environmental ruggedness and IK10 for vandal resistance
Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage, 256 GB tested
Models
Resolution Model Number Lens Description
2 MP IJV223-1ERS 3.6 mm Sarix Value Environmental IR Micro Dome
5 MP IJV522-1ERS 2.8 mm Sarix Value Environmental IR Micro Dome
Compatible Accessories—Mounting Kits
SRXV-WMS L-shaped Wall Bracket
IJTV-AP Electrical Box Adapter Plate
IJTFV-PA Pendant Mounting Adapter
IMJTV-JB Environmental Conduit Box
SRXV-WMP Pendant Wall Mount
IMV-WMJB Wall Mount Junction Box
SRXV-PP Pendant Extension Pipe
SRXV-PCF Pendant Ceiling Flange
SRXV-CM Corner Mount
SRXV-PLM Pole Mount
Technical Specifications
Camera Features
Item Description
Image Sensor 1/2.9" Progressive CMOS (IJV223-1ERS); 1/2.7" Progressive CMOS
(IJV522-1ERS)
Maximum Resolution 1920x1080 (2MP) (IJV223-1ERS); 2560x1920 (5MP) (IJV522-1ERS)
Lens Type Fixed-f ocal
Focal Length f = 3.6 mm (IJV223-1ERS); f = 2.8 mm (IJV522-1ERS)
Aperture F2.0
Iris Type Fixed iris
Field of View IJV223-1ERS
81° (Horizontal)
44° (Vertical)
95° (Diagonal)
IJV522-1ERS
103° (Horizontal)
76° (Vertical)
134°(Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
Day/Night Yes with removable IR cut filter
IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
Minimum Illumination 0.07 lux Color (IJV223-1ERS); 0.2 lux Color (IJV522-1ERS)
Pan Range 350° (IJV223-1ERS); 353° (IJV223-1ERS)
Tilt Range 75°
Rotation Range 350°
Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
Storage Seamless Recording to MicroSD/SDHC/SDXC card (256 GB tested) and
recording to network-attached storage (NAS)
