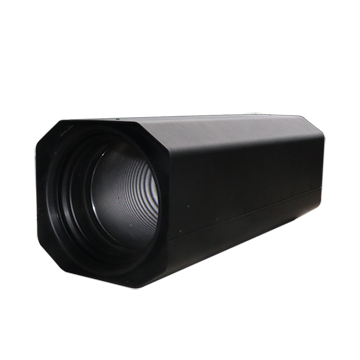

V20601 50~750mm 2MP P-Iris CCTV Camera Len

Brand:Foctek

Model:V20601

Len:50~750mm

Detail

V20601 50~750mm 2MP P-Iris CCTV Camera Len

Resolution     2Megapixel
Image format   φ9.2 mm
Focal length   50~749(±5%)mm
Aperture        F3.54±10%
Mount           Nonstandard

Field Angle
D×H×V(°)            D 9.36   0.63
±5%                   H 8.18   0.55
Optical Distortion  0.85%@W~0.47%@T(@y=4.13)
TV Optical Distortion 0.65%@W~0.36%@T(SMIA)
Relative illuminance  85.3%@W~93.3%@T
CRA   3.6°@W~1.0°@T
M.O.D.   5m
Lens structure 18G
TTL   359mm(in air)
Dimension Φ132.4×353.4mm
Flange BFL 17.526mm(in air)
BFL   47mm(in air)
MBF   13.526mm(in air)
IR Correction   NO
Operation
Iris            P(P-Iris
Focus      Motorized
Zoom       Motorized
Operating temperature -30℃~+80℃
