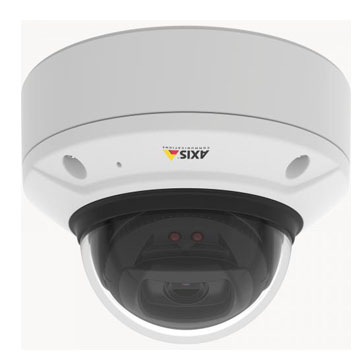

AXIS Q3515-LV Network Camera
AXIS Q3515-LVE Network Camera
AXIS Q3517-LV Network Camera
AXIS Q3517-LVE Network Camera
AXIS Q3517-SLVE Network Camera
AXIS Q3518-LVE Network Camera
AXIS Q3527-LVE Network Camera

Fixed dome for solid performance in HDTV 1080p
HDTV 1080p video at up to 120 fps
Forensic WDR, Lightfinder and OptimizedIR
Axis Zipstream technology
EIS, IK10 vandal resistance, IP52 water and dust protection
Power with redundancy and configurable I/O ports
Technical specifications
Models: AXIS Q3515-LV 22 mm / AXIS Q3515-LV 9 mm
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.1
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 100/120
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length * 9 - 22 / 3 - 9 mm
Horizontal field of view * 36 - 15 / 105 - 36 °
Vertical field of view * 19-9 / 57-21 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -10 to +50 °C
Outdoor Ready –
Vandal rating IK10
IP rating –
Designed for repaint
Yes
Sustainability PVC free
Cables & connectors
AXIS Multicable B I/O Audio Power, 2.5 m

AXIS T8129 PoE Extender
The smart solution for covering distances

Edge storage
AXIS Surveillance Card 128 GB
High endurance microSDXC? card

AXIS Surveillance Card 256 GB
High endurance micro SDXC? card

AXIS Surveillance Card 64 GB
High endurance microSDXC? card

I/O devices
AXIS Dome Intrusion Switch C

AXIS I/O Indication LED
Surveillance in action

AXIS T8331 PIR Motion Detector
Indoor detection of any motion

Media converters

AXIS T8640 PoE+ over Coax Adapter Kit
Cost-efficient migration to network video for smaller installations

AXIS T8645 PoE+ over Coax Compact Kit
Compact, cost-efficient single-channel migration to IP

AXIS T8646 PoE+ Over Coax Blade Kit
Cost-efficient migration to network video for larger installations

AXIS T8648 PoE+ over Coax Blade Compact Kit
Compact, cost-efficient multi-channel migration to IP

Microphones

AXIS Device Microphone A

AXIS T8353A Microphone 3.5 mm

Mounts
AXIS ACI Conduit Adapter 1/2”-3/4” A
AXIS ACI Conduit Adapter 1/2"?3/4" A

AXIS ACI Conduit Adapter 1/2″-3/4″ NPS

AXIS T91B47 Pole Mount
For different pole diameters

AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory

AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory

AXIS T91B53 Telescopic Ceiling Mount
For affordable and flexible ceiling installations
Requires additional accessory

AXIS T91B63 Ceiling Mount
Requires additional accessory

AXIS T91B67 Pole Mount
Pole mount for fixed dome cameras
Requires additional accessory

AXIS T91D61 Wall Mount 1.5” NPS
Wall mount with 1.5″ NPS thread
Requires additional accessory

AXIS T91E61 Wall Mount
For Axis fixed dome pendant kits
Requires additional accessory

AXIS T94K01D Pendant Kit

AXIS T94R01B Corner Bracket
For outdoor and indoor installations
Requires additional accessory

AXIS T94R01P Conduit Back Box
Requires additional accessory

AXIS T94V01C Dual Camera Mount
Back-to-back camera installation made easy

AXIS TP3201 Recessed Mount
Discreet video and audio surveillance

AXIS TQ1601-E Conduit Back Box
Aluminum conduit back box for increased mounting possibilities

Power
AXIS T8120 Midspan 15 W 1-port

Switches
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management

AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management

AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management

Tools & extras
AXIS Dome Intrusion Switch C

AXIS I/O Indication LED
Surveillance in action

AXIS T8415 Wireless Installation Tool
Simplicity in your hand

Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3515-LV 9 mm AR, AU, BR, CN, EU, JP, KR, UK, US 01039-001
AXIS Q3515-LV 9 mm IN 01039-113
AXIS Q3515-LV 22 mm AR, AU, BR, CN, EU, JP, KR, UK, US 01044-001
AXIS Q3515-LV 22 mm IN 01044-113
