Brand:AXIS
Model:AXIS P5654-E
len:4.0-84.6 mm
F1.6 - 4.5 77.0°- 3.6° 43.1°- 2.0°

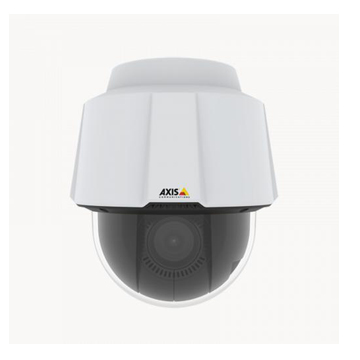

AXIS P5654-E PTZ Network Camera
Cost-effective PTZ for versatile surveillance
HDTV 720p with 21x optical zoom
Lightfinder 2.0 and Forensic WDR
Signed firmware and secure boot
Electronic image stabilization
Zipstream with support for H.264 and H.265
AXIS P5654-E PTZ Network Camera is a cost-effective PTZ camera that offers wide area coverage with 77° field of view. Thanks to the newest generation of Axis chip, it offers excellent video quality, even in the most challenging light conditions, and a high level of defense to protect your system. It’s ideal for deterrent surveillance of large indoor and outdoor areas and provides great details when zooming in.
AXIS P5654-E offers superb image quality in HDTV 720p with 21x optical zoom. It’s got Forensic WDR for clarity even when there’s both dark and light areas in the scene. And Lightfinder 2.0 for low-light images with more saturated colors and sharper images of moving objects. Additionally, it has electronic image stabilization (EIS) for stable images despite vibration. And focus recall gives you instant focus in challenging light conditions. Plus, it comes with four scene profiles (indoor, outdoor, forensic and traffic) with different image settings optimized to suit specific scenarios.
This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements.
Image sensor | CMOS |
Image sensor size | 1/2.8 |
Sensor size in megapixel | 1.0 |
Lightfinder | Lightfinder 2.0 |
Wide dynamic range | Forensic WDR |
Min illumination/ light sensitivity (Color) | 0.10 lux |
Min illumination/ light sensitivity (B/W) | 0.01 lux |
Built-in IR | – |
OptimizedIR | – |
Local storage (memory card slot) | Yes |
Operating temperature | -30 to 50 °C |
Outdoor Ready | Yes |
Vandal rating | IK10 |
IP rating | IP66 |
Designed for repaint | Yes |
Autotracking version | Autotracking 2 |
Orientation aid | – |
Max video resolution | 1280x720 |
Max frames per second | 50/60 |
Day and Night functionality | Yes |
Electronic image stabilization | Yes |
Focal length | 4.0 - 84.6 mm |
Horizontal field of view | 76.2-3.6 ° |
Vertical field of view | 42.6-2.0 ° |
Pan range | 360 endless |
Tilt range | +/- 90 |
Guard tour | limited guard tour |
Optical zoom | 21 |
Digital zoom | 12 |
Zipstream | Yes |
H.264 | Baseline, High, Main |
H.265 | Yes |
Motion JPEG | Yes |
Audio Support | – |
Built-in microphone | – |
Audio detection | – |
Active tampering | – |
Alarm inputs/outputs | – |
PoE Class | 4 |
Signed firmware | Yes |
Secure boot | Yes |
TPM | – |
