Brand:AXIS
Model:AXIS Q6135-LE
Lens Focal length 4.3-137.6mm

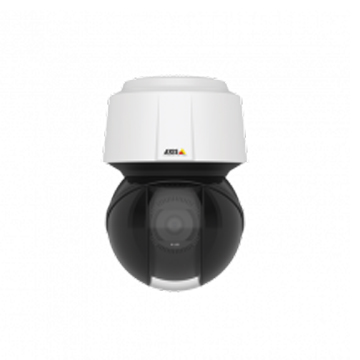

AXIS Q6135-LE 01958-002 PTZ Network Camera
High-speed PTZ with long-range OptimizedIR
HDTV 1080p with 32x optical zoom
OptimizedIR (250 m/ 820 ft range)
Axis Lightfinder 2.0
Autotracking 2 and orientation aid
Axis Object Analytics
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS Q6135-LE 50 Hz / AXIS Q6135-LE 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
General
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -50 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version Autotracking 2
Orientation aid orientation aid PTZ
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 4.3-137.6mm
Horizontal field of view 58.3-2.4 °
Vertical field of view 34.9-1.3 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range +20 to -90
Guard tour preset position tour
Optical zoom 32
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class High PoE
Security
Signed firmware Yes
Secure boot Yes
TPM Yes
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q6135-LE 60 Hz US 01959-004
AXIS Q6135-LE 60 Hz KR 01959-007
AXIS Q6135-LE 60 Hz JP 01959-005
AXIS Q6135-LE 60 Hz BR 01959-012
AXIS Q6135-LE 50 Hz AU 01958-006
AXIS Q6135-LE 50 Hz AR 01958-008
AXIS Q6135-LE 50 Hz CN 01958-009
AXIS Q6135-LE 50 Hz EU 01958-002
AXIS Q6135-LE 50 Hz UK 01958-003
AXIS Q6135-LE 50 Hz IN 01958-113
