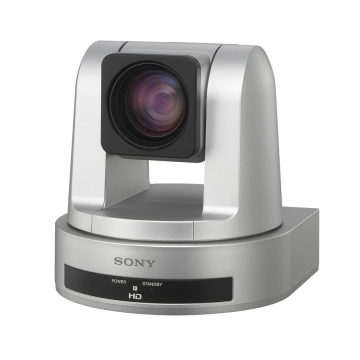

SRG-120DS Full HD remotely operated PTZ camera

Brand:SONY

Model:SRG-120DS

Detail

SRG-120DS Full HD remotely operated PTZ camera

Specifications


Specifications
Image Device
1/2.8-type Exmor CMOS
Effective Pixels
Approximately 2.1 megapixels
Lens
12x optical/12x digital zoom
Focal Length - 3.9 mm (wide) to 46.8 mm (tele)
F1.8 to 2.0
Minimum Object Distance
10 mm (Wide) to 1500 mm (Tele)
Auto Exposure
Yes
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Gain
Auto/Manual (0 to +43 dB)
White Balance
Auto, Indoor, Outdoor, One-push auto, ATW, Manual
Pan Angle/Speed
Angle: +/- 100 degrees
Speed: 300 degrees /sec.
Tilt Angle/Speed
Angle: +25 degrees / -25 degrees
Speed: 126 degrees / sec
Horizontal Viewing Angle
71 degrees wide
Digital Zoom
Digital Zoom
12x
Preset Positions
16
Focus System
Auto/Manual
Sync System
INT
Wide Dynamic Range
Yes (View-DR)
Interface
Camera Control Interface
VISCA protocol with built-in IP control
Camera Control Interface: RJ-45 / RS-232C
Video Output
Horizontal Resolution
1,000 TV lines
Minimum Illumination
1.8 lx (50 IRE, F1.8 30 fps)
S/N Ratio
50 dB
Video Output
3G-SDI
Signal System
1080/59.54p, 50p, 29.87p, 25p
1080/59.94i, 50i
720/59.94p, 50p, 29.97p, 25p
General
Dimensions (W x H x D)
153 x 156 x 153 mm (6-1/8 x 6-1/4 x 6-1/8 inches)
Weight
1.6 kg (3 lb. 8.4 oz)
Power Requirements
DC 12V (DC 10.8 to 13.2 V)
Power Consumption
16.8 W
Operating Temperature
0°C to 40° C (32°F to 104° F)
Storage Temperature
-20°C to 60°C (-4°F to + 140°F)
