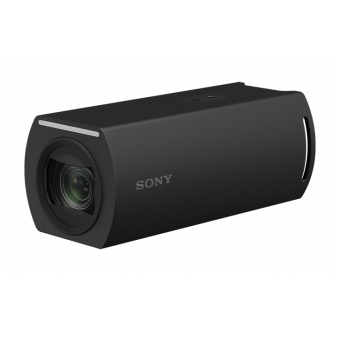

SRG-XB25 Compact 4K 60p BOX-style remote camera

Brand:SONY

Model:SRG-XB25

Detail

SRG-XB25 Compact 4K 60p BOX-style remote camera with 25x optical zoom

Specifications


General
Video Format
3840p/1080p/720p/480p (480p is only for HDMI)
Image Sensor
1/2.5" 8.5 MP CMOS
Frame Rate
59.94/50/29.97/25
Video Output Interface
HDMI 2.0 / Ethernet
Optical Zoom
25x
Digital Zoom
x6 (including pixel zoom)
Focal Length
f = 4.8 mm to 120 mm, F1.6 to F3.4
Pan Tilt
n/a
Horizontal Viewing Angle
68°
Shutter Speed
1/10000s to 1/1s
Min Object Distance
1.5 m
Minimum illumination
0.8 lux (4K output, 50 IRE, 1/30s)
Video Codec
H.265, H.264
Audio Codec
AAC
Multiple Video Stream
Yes
Video Stream
RTSP / RTMP / SRT / NDI®|HX / MPEG-TS
Camera Control
VISCA over IP / ONVIF Profile S *TBD / VISCA / CGI command
Tally Light
High / Low / Off
Audio Input
3.5 mm x 1
POE
Yes (IEEE802.3af)
DC In
12VDC +/-20%
IR remote controller
n/a
Dimensions (W x H x D) *1
80.1 × 70.9 × 177.2 mm
Mass
Approx. 0.87 kg (1 lb 15 oz)
Notes
*1 The values for dimensions are approximate.
