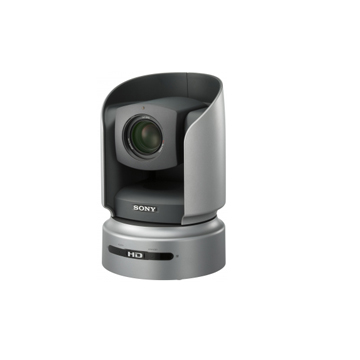

BRC-H700 SONY HD robotic camera

Brand:SONY

Model:BRC-H700

Detail

BRC-H700 SONY HD robotic camera

Accessories

BRU-H700
HD optical multiplex unit for BRC-H700

HFBK-SD1
SDI Output Board

BRBK-H700
HD Optical Multiplex Card for BRC-H700

HFBK-HD1
Hd-sdi Output Board

RM-BR300
Remote control unit for BRC series cameras

Specifications


Generic Specifications
Image device
Three 1/3 type IT CCDs
Total picture elements
Approx. 1.12 Megapixels
Effective picture elements
Approx. 1.07 Megapixels
Signal systems
1080/59.94i, 1080/50i
Lens
12x optical zoom, 48x with digital zoom Carl Seiss Vario-Sonnar T*(R)
Focal length
f=4.5 to 54.0 mm (F1.6 to F2.8)
Minimum object distance
800 mm (Tele end)
Horizontal viewing angle without Image Stabilization
5.5 degrees (Tele) to 60.3 degrees (Wide)
Vertical viewing angle without Image Stabilization
3.1 degrees (Tele) to 36.2 degrees (Wide)
Focus system
Auto/Manual
Pan/Tilt angle
-170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)
Pan/Tilt speed
0.25 to 60 degrees/s (Pan/Tilt)
Minimum illumination
6 lx (50 IRE, F1.6)
S/N ratio
50 dB
Shutter speed
1/10,000 to 1/59.94 (1/50) s
Gain
Auto/Manual (0 to 18 dB and Hyper Gain)
White balance
Auto, Indoor, Outdoor, One-push WB, Manual
Optical Image Stabilizer
On/Off
Image flip
On/Off
ND filter
Off/ND1/ND2
Preset positioning
16 positions
Video output (Built-in)
Analog RGB, Analog Y/Pb/Pr
Video output (With optional card(s))
HFBK-HD1 : HD-SDI, HFBK-SD1 : Down converted SD (RGB, Y/Cb/Cr, Y/C, Composite, SDI x2) HFBK-XG1 : WXGA, XGA, VGA, HFBK-TS1 :HDV
Camera control interface
RS-232C/RS-422 (VISCA protocol)
Backlight compensation
On/Off
Operating temperature
0 to 40 degrees (32 to 104 °F)
Storage temperature
-20 to 60 degrees (-4 to 140 °F)
Power requirements
DC 12 V
Power consumption
Max. 24 W (without optional card)
Dimensions (Diameter x H)
207 x 315.8 mm (8 1/4 x 12 1/2 inches)
Mass
4.5 kg (9 lb 15 oz)
Supplied Accessories
IR Remote Commander Unit (1) Wire rope (1) Mounting screws (1) Operating instructions (1) AC
