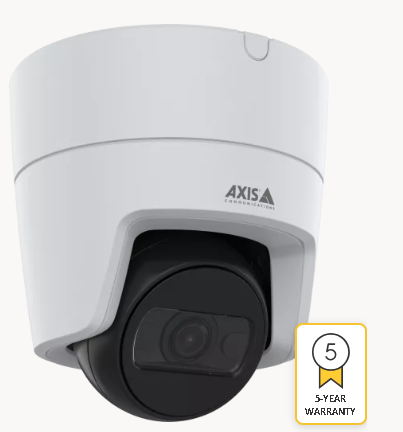

AXIS M3125-LVE Dome Camera
AXIS M3126-LVE Dome Camera
AXIS M3128-LVE Dome Camera
AI-powered 2 MP turret style camera
Great image quality in 2 MP
WDR, Lightfinder, and OptimizedIR
Available in black or white
AI-based video analytics
Built-in cybersecurity with Axis Edge Vault
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M3125-LVE White IN 02916-113
AXIS M3125-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02916-001
AXIS M3125-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02917-001
AXIS M3125-LVE Black IN 02917-113
AXIS M3126-LVE White IN 02918-113
AXIS M3126-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02918-001
AXIS M3126-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02919-001
AXIS M3126-LVE Black IN 02919-113
AXIS M3128-LVE White IN 02920-113
AXIS M3128-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02920-001
AXIS M3128-LVE Black IN 02921-113
AXIS M3128-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02921-001
Technical specifications
DATASHEET (PDF)
Variants: AXIS M3125-LVE Black / AXIS M3125-LVE White
Camera
Property description Property value
Lightfinder Lightfinder
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Image sensor CMOS
Image sensor size 1/2.8"
Wide dynamic range WDR
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.9 mm
Horizontal field of view 110 °
Vertical field of view 60 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Audio
Property description Property value
Audio Support -
Built-in microphone -
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed OS Yes
Secure boot Yes
Secure keystore Secure Element (CC EAL6+, FIPS 140-3 Level 3)
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66
Designed for repaint Yes
Sustainability PVC free
* Some technical specifications may vary depending on which hardware option you choose.
