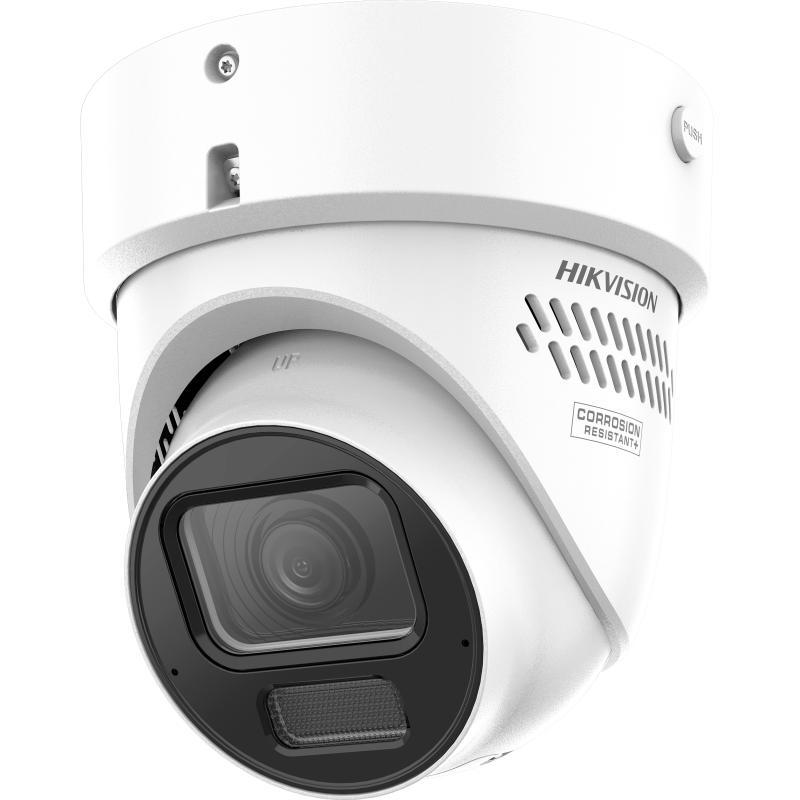

8MP Powered by Darkfighter Motorized Varifocal Turret Network Camera
Motorized varifocal lens for easy installation and monitoring
Innovative socket design, highly waterproof and user-friendly
Focus on person and vehicle classification based on deep learning
Anti-corrosion design for stable protection (NEMA 4X)
Water and dust resistant (IP67) and vandal resistant (IK10)
Active strobe light and audio alarm to warn trespassers off
Crystal clear audio with Arrayed Dual-Mic
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Available models:
DS-2CD2H86G2H-IZS2UY/SL(2.8-12mm)eFO-STD
DS-2CD2H86G2H-IZS2UY/SRB(2.8-12)eFO-STD
DS-2CD2H86G2H-IZS2UY/SL(2.8-12)eFOSTDBLK
DS-2CD2H86G2H-IZS2UY/SRB(2812)eFO-STDBLK
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°,

diagonal FOV 137.4° to 47.3°
Lens Mount
Integrated
Aperture
Max. F1.2
Depth Of Field
1 m to ∞
DORI
DORI
Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Accessories
DS-1475ZJ-Y
Vertical pole mount
DS-1476ZJ-Y
Corner mount
